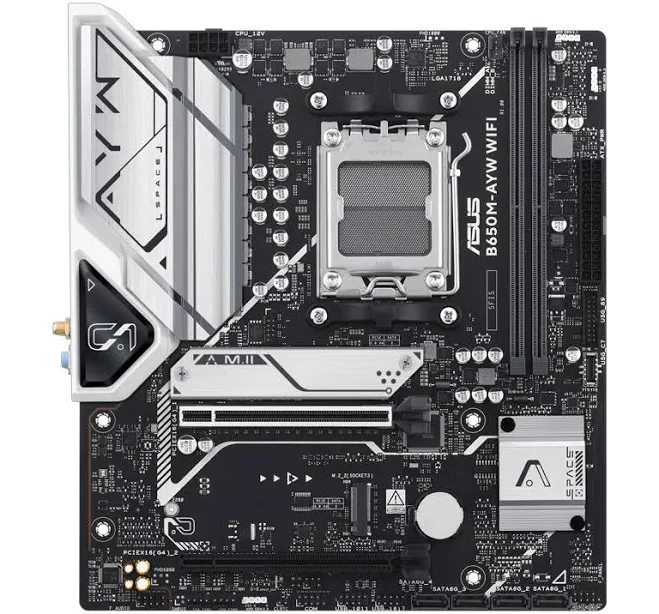

Asus B650M-AYW WIFI AM5 micro-ATX Motherboard

Name: Asus B650M-AYW WIFI AM5 micro-ATX Motherboard
Brand: ASUS
SKU: 97ffdbcd-0a87-4b67-ae28-307264bd1366
Price: 136.00 AUD
Availability: InStock

by ASUS

4.8

(185)

Best Price

$136.00$9999.00

at Centre Com · checked 16 May 2026

ASUS B650 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B650M-AYW WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Compare prices from 12 stores

eBay

96%

$427.35

$9999.00

Centre Com

Best Price

99%

$136.00

$9999.00

PC Case Gear

99%

$149.00

$9999.00

Umart

98%

$159.00

$9999.00

MSY

98%

$159.00

$9999.00

PCByte AU

98%

$159.00

$9999.00

Crox Development

98%

$159.00

$9999.00

Austin computers

98%

$169.00

$9999.00

betteroffice.store

98%

$179.00

$9999.00

Mwave Australia

98%

$201.95

$9999.00

Desertcart.ae

97%

$255.72

$9999.00

JW Computers

$9999.00

Specification	Value
Motherboard Socket Type	AM5
Motherboard Chipset	AMD B650
Motherboard Form Factor	Micro-ATX
Motherboard Model	B650M-AYW WIFI
Form Factor	Micro-ATX
Manufacturer	ASUS
Socket Type	AM5
CPU Compatibility	AMD Ryzen 9000 Series Desktop Processors, AMD Ryzen 7000 Series Desktop Processors
Motherboard Compatibility	Micro-ATX
RAM Type	DDR5
RAM Maximum Capacity	96GB
RAM Speed	Up to 8000+MT/s (OC)
RAM Number of Slots	2
RAM ECC Support	Yes (Un-buffered DIMM), Yes (On-Die ECC function for Non-ECC, Un-buffered DDR5 Memory)
Integrated Graphics	Yes (CPU dependent)
GPU Type	Integrated (CPU dependent)
Output Resolution	4K@60Hz
Memory Type	DDR5
Max Memory Capacity	96GB
Memory Slots	2
Memory Speed	Up to 8000+MT/s (OC)
ECC Support	Yes (Un-buffered DIMM), Yes (On-Die ECC function for Non-ECC, Un-buffered DDR5 Memory)
Memory Channel Support	Dual Channel
Expansion Slot Type	PCIe 4.0 x16
Motherboard Power Connectors	1 x 8-pin +12V Power connector
Power Connectors	1 x 8-pin +12V Power connector
CPU Manufacturer	AMD
CPU Series	Ryzen 9000 Series, Ryzen 7000 Series, Ryzen 8000 Series
CPU Generation	Ryzen 9000 Series, Ryzen 7000 Series, Ryzen 8000 Series
CPU For Use With	Desktop
Display Output Type	HDMI
Max Display Resolution	4K@60Hz
Number Of Display Outputs	1
PCIe Slots	1 x PCIe 4.0 x16 (supports x8/x4 mode)
Expansion M.2 Slots	2
GPU Output Interface	HDMI
GPU HDMI Ports	1
Storage Type	SATA, NVMe (M.2)
Storage Interface	SATA 6Gb/s, PCIe 4.0 x4, PCIe 5.0 x4
Storage Form Factor	M.2 2280
Storage M.2 Slots	2
Storage SATA Ports	4
Storage RAID Support	Yes (SATA RAID 0/1/10), Yes (PCIe RAID 0/1/10)
Motherboard Storage M.2 Slots	2
Motherboard SATA Ports	4
Motherboard RAID Support	Yes (SATA RAID 0/1/10), Yes (PCIe RAID 0/1/10)
Supports Overclocking	Yes (AMD Extended Profiles for Overclocking (EXPO™))
Ports	HDMI
USB	4 x USB 2.0 Type-A (rear)
Ethernet Ports	1
SATA Ports	4
Wireless	WiFi 6
Bluetooth	Bluetooth v5.3
Ethernet	2.5Gb Ethernet
Interface	PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x4/x2, SATA 6Gb/s
Other Ports	System Panel header, COM Port header, S/PDIF Out header
Suitable For Gaming	Yes
Top Use Cases	Gaming, Content Creation
Typical Users	Gamers, Creators
Chipset Manufacturer	AMD
Chipset Model	B650
Chipset Highlights	RAID support (SATA RAID 0/1/10), RAID support (PCIe RAID 0/1/10)
Color	black
Length	9.6 inch (24.4 cm)
Height	9.6 inch (24.4 cm)
Width	8.7 inch (22.1 cm)
Lighting	Q-LED Core, Addressable Gen 2 headers, Aura Sync
Cooling Type	M.2 heatsink, VRM heatsink design
Fan Headers	2 x 4-pin Chassis Fan headers
Motherboard Target Use Case	Gamers, Creators
Audio Chipset	Realtek High Definition Audio CODEC
Onboard Audio	Yes
Audio Channels	7.1 Surround Sound
Bios Highlights	UEFI BIOS
