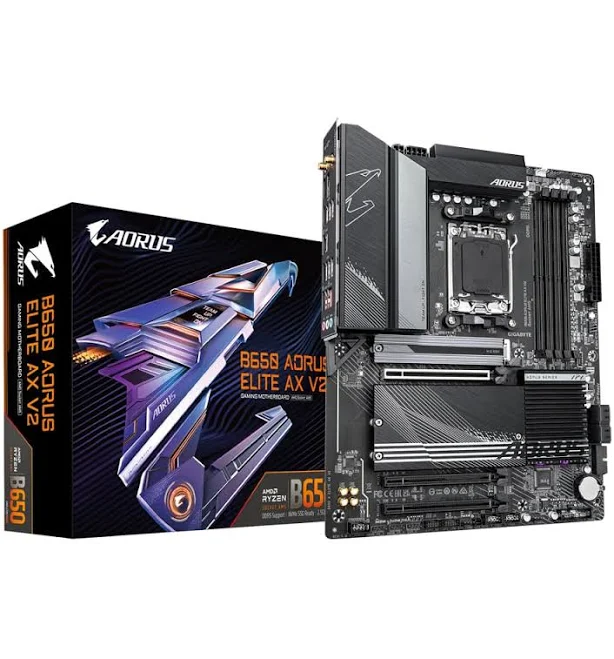

Gigabyte B650 Aorus Elite AX V2 AM5 ATX Motherboard (B650 AORUS ELITE AX V2)

Name: Gigabyte B650 Aorus Elite AX V2 AM5 ATX Motherboard (B650 AORUS ELITE AX V2)
Brand: GIGABYTE
SKU: e2e27479-76e3-4af0-8210-c8a26affcfc9
Price: 289.00 AUD
Availability: InStock

by GIGABYTE

4.7

(301)

Best Price

$289.00$409.01

at Mwave Australia · checked 15 Nov 2025

The Gigabyte B650 Aorus Elite AX V2 motherboard is aimed at users who wish to create a powerful high-performance system for professional use, gaming, and multimedia. This motherboard uses the AM5 socket and supports AMD Ryzen processors of the 7000 and 8000 series. The motherboard has three M.2 slots for SSD installation, supports memory speeds up to DDR5 8000, and features multiple communication ports, such as USB 3.2 Gen 2, USB Type-C, Wi-Fi 6, and Ethernet. It also includes advanced technologies for increased data transfer speeds and Smart Fan 6 for exceptionally quiet operation. Overall, the Gigabyte B650 Aorus Elite AX V2 motherboard is aimed at users seeking an advanced motherboard with high performance and multiple functions, for professional use and gaming.

Compare prices from 11 stores

JB Hi-Fi

Popular

17%

$338.00

$409.01

Woolworths

Popular

17%

$338.20

$409.01

Bunnings Warehouse

Popular

$391.01

BIG W

Popular

$409.01

Centre Com

Best Price

29%

$289.00

$409.01

Scorptec

Best Price

29%

$289.00

$409.01

PC Case Gear

Best Price

29%

$289.00

$409.01

Mwave Australia

Best Price

29%

$289.00

$409.01

Umart

27%

$299.00

$409.01

PLE Computers

10%

$369.00

$409.01

Kogan.com

$408.01

Specification	Value
Motherboard Socket Type	AM5
Motherboard Chipset	AMD B650
Motherboard Form Factor	ATX
Motherboard Model	B650 AORUS ELITE AX V2
Motherboard Series	AORUS ELITE AX V2
Form Factor	ATX
Manufacturer	Gigabyte
Socket Type	AM5
CPU Compatibility	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Motherboard Compatibility	ATX
RAM Type	DDR5
RAM Maximum Capacity	192 GB
RAM Speed	5200 MHz
RAM Number of Slots	4
RAM ECC Support	No
CPU Manufacturer	AMD
CPU Series	Ryzen
CPU Generation	Ryzen 7000 Series, Ryzen 8000 Series
Discrete Graphics	Yes
Integrated Graphics	Yes
GPU Type	Integrated (CPU required)
Output Resolution	4096 x 2160 pixels
Multi Card Support	No (Parallel processing technology support: Not supported)
Memory Type	DDR5
Max Memory Capacity	192 GB
Memory Slots	4
Memory Speed	5200 MHz
ECC Support	No
Memory Channel Support	Dual Channel
Expansion Slot Type	M.2, PCIe x16
Motherboard Power Connectors	UD Power Connector, 8+4 pin CPU with UD Solid Pin
Power Connectors	UD Power Connector, 8+4 pin CPU with UD Solid Pin
Display Output Type	HDMI
Max Display Resolution	4096 x 2160 pixels
Number Of Display Outputs	1 (HDMI)
PCIe Slots	2 x PCIe 3.0 x1
Expansion M.2 Slots	3
Storage Type	M.2 SSD
Storage Interface	PCIe 5.0 x4, PCIe 4.0 x4, SATA 6Gb/s
Storage Form Factor	M.2 25110 (SSD)
Storage M.2 Slots	3
Storage SATA Ports	4
Storage RAID Support	Yes
Motherboard Storage M.2 Slots	3
Motherboard SATA Ports	4
Motherboard RAID Support	Yes
Supports Overclocking	Yes (DDR5)
Chipset Manufacturer	AMD
Chipset Model	B650
Chipset Highlights	RAID support
Color	Black
Length	12.0 in
Height	3.14 in
Width	12.0 in
Lighting	RGB Fusion
Ports	DisplayPort, HDMI, USB 3.2 Gen 2
USB	5 x USB 3.2 Gen 1
Ethernet Ports	1
SATA Ports	4
Wireless	Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Ethernet	2.5 Gigabit Ethernet
Interface	USB 3.2 Gen 2, PCIe 5.0, USB 2.0, USB 3.2 Gen 1
Thunderbolt Ports	0
Other Ports	Microphone (mini-jack), Antenna, Audio line-in (mini-jack), Audio line-out (mini-jack)
Infrared	No
Cooling Type	M.2 Thermal Guard, 6mm Heatpipe, 7 W/mk Thermal Pad, M.2 Thermal Guard Ext., Smart Fan 6
Fan Headers	Hybrid Fan Headers
Motherboard Target Use Case	Gaming
Audio Chipset	ALC897
Onboard Audio	Yes
Audio Channels	7.1 Channels
Suitable For Gaming	Yes
Top Use Cases	Gaming
Typical Users	PC enthusiasts, Modern gamers
Age Range	Adults
Bios Highlights	Direct to BIOS, Q-Flash Plus, Quick Access, Safe Mode, UC BIOS
Release Date	2023-11-16
