Up to 13% OFF

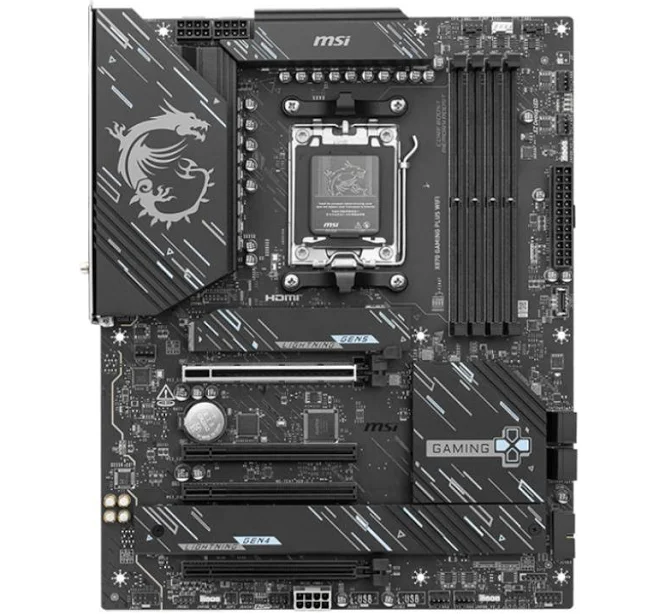

MSI X870 Gaming Plus WiFi AMD X870 Desktop Motherboard

Name: MSI X870 Gaming Plus WiFi AMD X870 Desktop Motherboard
Brand: MSI
SKU: e2bf32dd-eabb-42eb-9fbb-c6f781261451
Price: 407.00 AUD
Availability: InStock

by MSI

4.8

(60)

Best Price

$407.00$469.00

at Newegg.com - BeachAudio - AU · checked 15 Nov 2025

Build a top-notch powerhouse with the MSI X870 Gaming Plus Wi-Fi 7 motherboard. Designed for AMD Ryzen 9000/8000/7000 Series CPUs, it features an AM5 socket and ATX form factor. The PCIe 5.0 slot and Wi-Fi 7 deliver lightning-fast data transfer speeds and ultra-stable connectivity. The Audio Boost delivers studio-quality sound for an immersive gaming experience.

Compare prices from 13 stores

Newegg.com - BeachAudio - AU

Best Price

13%

$407.00

$469.00

PC Case Gear

11%

$419.00

$469.00

MSY

$425.00

$469.00

Centre Com

$425.00

$469.00

Umart

$425.00

$469.00

MightyApe.com.au

$428.77

$469.00

Dick Smith AU

$428.77

$469.00

JW Computers

$428.77

$469.00

Kogan.com

$428.77

$469.00

Mwave Australia

$429.00

$469.00

Computers & Parts Land

$429.00

$469.00

Scorptec

$429.00

$469.00

PLE Computers

$469.00

Specification	Value
CPU Manufacturer	AMD
Motherboard Socket Type	AM5
Motherboard Chipset	AMD X870
Motherboard Form Factor	ATX
Motherboard Model	X870 Gaming PLUS WIFI
Motherboard Series	Pro
Form Factor	ATX
Manufacturer	MSI
Socket Type	AM5
CPU Compatibility	AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Motherboard Compatibility	ATX
Clock Speed	DDR5 8200 - 5600 (OC) MT/s, DDR5 5600 - 4800 (JEDEC) MT/s
Boost Clock Speed	8200+ MT/s (Ryzen™ 9000 Series Processors, 1DPC 1R)
Supports Overclocking	Yes (Memory Overclocking), Yes (Ryzen™ 9000 Series Processors max. overclocking frequency)
RAM Type	DDR5
RAM Maximum Capacity	256GB
RAM Speed	8200 MHz
RAM Number of Slots	4
RAM ECC Support	No (Non-ECC)
Discrete Graphics	No
Integrated Graphics	Yes
GPU Type	Integrated
Output Resolution	4K 60Hz
Multi Card Support	No
Memory Type	DDR5
Max Memory Capacity	256GB
Memory Slots	4
Memory Speed	8200 MHz
ECC Support	No (Non-ECC)
Memory Channel Support	Dual Channel
Expansion Slot Type	PCIe 5.0 x16
Motherboard Power Connectors	2x CPU_PWR
Power Connectors	2x CPU_PWR
Display Output Type	HDMI
Max Display Resolution	4K 60Hz (DisplayPort 1.4 over USB Type-C)
Number Of Display Outputs	1 (Type-C DisplayPort)
PCIe Slots	PCIe 5.0 x16, 4x PCI-E x16 slot, PCIe 3.0 x1, PCIe 4.0 x4, PCIe 4.0 x8
Expansion M.2 Slots	3
Storage Type	SSD
Storage Interface	SATA 6G, PCIe 4.0 x2, PCIe 4.0 x4, PCIe 5.0 x4
Storage Form Factor	2280/2260 (M.2_1, M.2_3)
Storage M.2 Slots	3
Storage SATA Ports	4
Storage RAID Support	Yes (RAID 5 only with Ryzen™ 9000 series processors), No (SATA_A1~A4), Yes (RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices)
Motherboard Storage M.2 Slots	3
Motherboard SATA Ports	4
Motherboard RAID Support	Yes (RAID 5 only with Ryzen™ 9000 series processors), No (SATA_A1~A4), Yes (RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices)
Suitable For Gaming	Yes
Top Use Cases	Gaming
Typical Users	Gamers
Chipset Manufacturer	AMD
Chipset Model	X870
Chipset Highlights	RAID support
Ports	USB 2.0, HDMI, USB 10Gbps Type C (Front), USB 5Gbps Type A (Front), HDMI™
USB	4x USB 2.0 (Rear)
Ethernet Ports	1
SATA Ports	4
Wireless	Wi-Fi 7
Bluetooth	Bluetooth® 5.4
Ethernet	5G LAN
Interface	PCIe 5.0
Other Ports	Audio connectors
Infrared	No
Color	Black
Length	304.8mm
Height	243.84 mm
Width	243.84mm
Lighting	RGB LED, Addressable V2 RGB LED, EZ Debug LED
Cooling Type	Shield Frozr II, Extended Heatsink Design
Fan Headers	6x System Fan
Motherboard Target Use Case	Gaming
Audio Chipset	Realtek ALC897
Onboard Audio	Yes
Audio Channels	7.1-Channel
Barebone Highlights	With WiFi, With Bluetooth
Bios Highlights	Flash BIOS Button
